Quantitative Assessment of Right Atrial Function by Strain Imaging in Adult Patients with Totally Corrected Tetralogy of Fallot
Abstract
Background: Atrial function could be affected by many cardiac disorders. Recently Strain imaging has been employed for the assessment of atrial function in several disorders involving atria.
Objectives: We aimed to measure the right atrial function by this method in adult patients with surgically corrected Tetralogy of Fallot (TOF).
Patients and Method: Forty six adult patients with TOF who underwent total correction surgery in childhood and had severe pulmonary regurgitation and fulfilled the criteria of ACC/AHA guideline for PVR enrolled. The control group included 50 healthy adults with matched age and sex. Standard transthoracic echocardiography was performed on both groups which myocardial velocities and strain imaging indices were obtained from their RA free wall.
Results: The myocardial velocities and deformational indices of RA free wall were significantly compromised in TOF patients compared with normal subjects. There was no correlation between RA function data measured by strain imaging and RV volume measured in CMR.
Conclusions: In light of our findings, we concluded that RA function is severely diminished in adult patients with TOF. It would play an important role in pathophysiological process of the right sided heart failure in these patients.
Keywords: Right Atrial Function ; Strain Imaging; Tetralogy of Fallot
1. Background
Atrial function could be affected in many cardiac disorders. The three components of the atrial function are: 1) the reservoir function, storing blood when the tricuspid valve is closed and releasing stored blood when it opens; 2) the conduit function, transferring passive blood directly from the coronary and systemic veins to the RV when the tricuspid valve is open; and 3) the booster pump function, contracting the atrium in late diastole to complete ventricular filling (1-10). One of the modalities to evaluate atrial function is strain imaging. According to the previous studies on the deformational properties of the left atrium (LA) (2, 6, 10) and the right atrial function (RA) (1, 3, 5, 7, 8), the systolic strain and strain rates represent the atrial reservoir function and the early and late diastolic strain rates show the conduit and booster functions, respectively. Previous studies have reported that pathologically altered atrial function can profoundly affect the cardiac performance.
2. Objectives
We aimed to measure the regional longitudinal strain and strain rate profiles in the right atrial wall to quantify the right atrial function in patients with totally corrected tetralogy of Fallot ( TOF).
3. Patients and Method
Forty-six adult patients with a diagnosis of TOF who underwent total correction surgery in childhood and had severe pulmonary regurgitation (PR) and fulfilled the criteria of American college of cardiology/American heart association (ACC/AHA) guideline for pulmonary valve replacement (PVR) (11-13) enrolled. All of the patients were assessed by cardiac magnetic resonance (CMR) regarding their pulmonary regurgitation severity and right and left ventricular size and function. The control group was comprised of 50 healthy volunteer adults with matched age and sex. The normal subjects were chosen by taking into account history, physical examination, ECG, and echocardiography. The study was approved by the ethics committee of Rajaie Cardiovascular, Medical and Research Center, and informed consent was obtained from all the patients. A complete two-dimensional (2D) color Doppler echocardiogram was performed in each subject using a commercial GE Vivid 7 with a 3-MS variable frequency harmonic phased array transducer. The LV global systolic function was evaluated in terms of the EF, employing the biplane Simpson method. The RV systolic function was evaluated in accordance with the American Society of Echocardiography guidelines for the echocardiographic assessment of the right heart in adults (14) using the following parameters: Tricuspid annular plane systolic excursion (TAPSE) and tissue Doppler–derived tricuspid lateral annular systolic velocity (RVSm).TAPSE < 16 mm, and RVSm velocity < 10 cm/s indicated RV systolic dysfunction. The RA area was measured at the end-systole in the four-chamber view. Real-time 2-D color Doppler myocardial imaging data were recorded from the RA, using standard four chamber apical views at a high frame rate (> 150 FPS) and the narrowest sector angle possible. The data obtained were stored in digital format and analyzed offline with dedicated software (Echopac Vivid 7). The method used for acquiring and analyzing the strain imaging of RA was based on our previous report ( 7 ). The region of interest for acquiring strain analysis was the right atrial lateral wall between 6 o’clock and 9 o’clock. The region of interest was kept at the center of the ultrasound sector to ensure the accuracy of the insonation angle with the long-axis motion. A sample volume of 3-4 mm was utilized for the calculation of the longitudinal strain rate. During the RV systole, the RA acts as a reservoir and collects blood from the caval veins while the tricuspid valve is closed; this process results in the enlargement of the RA. Also during the RV systole, the passive stretching of the RA walls leads to the longitudinal lengthening of the RA, which is recorded as a positive S and SR value. During early diastole, the RA acts as a conduit for passive emptying and as a booster pump during atrial contraction in late diastole. And finally during RV diastole, the atrial shortening occurs which is recorded as a negative SR value. This method made the calculation of the parameters of peak systolic strain (S), peak systolic strain rate (SR), early diastolic strain rate (EDSR), and late diastolic strain rate (LDSR) possible .(Figure 1). Three consecutive beats in each view were analyzed and averaged. All the analyses were conducted using IBM SPSS satistic 19 (IBM corp.Armonk, NY) to compare the strain imaging data the patients and normal subjects. All data were initially analyzed using the Kolmogorov-Smirnov test to assess the normality. Categorical variables are presented as numbers and percentages and quantitative variables as mean ± standard deviation (SD). The Student's t-test was performed comparison of interval variables between two sub-groups. The Pearson's product-moment correlation coefficient was utilized to find the correlations between interval data. A P-value of 0.05 was considered statistically significant. Inter-observer variability and intra-observer variability were calculated as the absolute difference divided by the average of the two observations for all the parameters. Ten cases were analyzed for the calculation of the inter- and intra-observer variability.3.1. Patient Selection
3.2. Echocardiographic Study
3.3. Strain Rate Imaging in the Right Atrium
3.4. Statistical Analysis
4. Results
Among the 46 TOF patients, the mean of age 25.2 ± 5.7, 33 (71.7%) were male and 13 (28.3%) were female. All the patients were symptomatic [New York Heart Association (NYHA) class III] and had remarkable exercise intolerance assessed by standard exercise tests and severe pulmonary regurgitation based on the CMR and echocardiography criteria. Table 1 depicts general characteristics, echocardiography and CMR data of patients versus normal subjects.
|
Table 1.
General Characteristics of the Studied Sample
|
The RA tissue velocities and deformational indices were severely compromised in patients compared with normal subjects (Table 2).
|
|
Table 2.
Right Atrial Myocardial Velocities and Deformation Indices in TOFversus Normal Subjects
|
As has shown in Table 2, peak RA systolic strain, indices of atrial reservoir function (SR) were severely diminished in TOF patient versus normal subjects [73.4 ± 32 versus 132 ± 51 (P < 0.001) and 2.7 ± 1.1 versus 6.3 ± 3.0 (P < 0.001)]. EDSR and LDSR (indices of conduit and booster function of atrium) were also significantly compromised in TOF patients versus normal subjects [2.7 ± 1.5 versus 5.4 ± 1.7 (P < 0.001) for EDSR and 3 ± 1.5 versus 4.5 ± 2.2 (P < 0.001) for LDSR]. There was no correlation between RA deformational indices and other echocardiographic data including RV (right ventricle) size, TAPSE, RVSm, RV fractional area change and RA area. (r = 0.05-0.2 with no significant p values). The mean of RV diastolic volume index was 159 ± 8.5 milliliter/m 2 . We also found no correlation between this CMR index -as the most important CMR variable in the assessment of TOF patients with severe PR- and the decision making for PVR, and RA deformational indices (r = 0.1-0.2 with no significant p values). The intra-observer variability for the peak RA systolic strain, SR, EDSR, and LDSR was 12.4 ± 10%, 12.1 ± 11%, 13.2 ± 8%, and 10.8 ± 5%, respectively; and the inter-observer variability for the peak RA systolic strain, SR, EDSR, and LDSR was 13.2 ± 3 %, 14.2 ۳%, 12.3 ± 10%, and 11.4 ± 7%, respectively.
|
Figure 1.
Right Atrial Strain Rate Analysis
|
5. Discussion
The present study assessed the RA function using myocardial deformation properties in severely symptomatic TOF patients who had severe pulmonary regurgitation and were candidate for PVR. Our findings demonstrate a significant decrease in the deformational indices of the RA in TOF patients compared with the normal subjects. Recently, the utility of atrial performance for estimating cardiovascular risks, guiding therapy and decision making in various clinical settings becomes increasingly clear. Assessment of atrial size, anatomy and function can be performed with different imaging techniques (1-10). Quantification of atrial myocardial function by strain imaging has been recently proposed. The importance of right atrial function has prompted many investigators to focus on it via SRI in patients with different types of cardiovascular disorders (4, 5, 7) . The strain rate imaging allows the non-invasive functional quantification of the right atrial function analyzing the deformation properties independent of cardiac rotational motion and the tethering effect. The previous studies on the deformational properties of the LA and the RA function state that the systolic strain and strain rate represent the atrium reservoir function and the early and late diastolic strain rates demonstrate the conduit and booster functions, respectively (3, 5, 8). The reduction in the RA strain and strain rate indices in our patients signifies that all three components of RA function have severely compromised. This severe RA dysfunction could be secondary to longstanding hemodynamic loads or the direct involvement of the atrial myocardial fibers by the pathologic changes related to the congenital heart disease process. Right ventricular volume overload, due to pulmonary regurgitation and/or tricuspid regurgitation in TOF patients will elevate right atrial pressure and volume (11, 12). Moreover, these patients have all had intra cardiac surgery with the use of cardiopulmonary bypass and a right atrial scar, the sequel of the atriotomy necessary for the cannulation or visualization of intra cardiac structures. This scarring would lead to the loss of atrial compliance and compromise of atrial reservoir function. So, either due to the elevated right ventricular pressure or as a result of increased right ventricular volume, the right atrial wall is often stretched in patients with corrected TOF. These all together will not only lead to a compromised atrial function, but also to a high prevalence of atrial arrhythmias (7). Hui W et al. (15) study showed that tissue Doppler derived strain rate can provide quantitative analysis of the regional right atrial performance in patients with TOF. They assessed 50 asymptomatic patients following corrective surgery of tetralogy of Fallot, and concluded a significantly reduced right atrial active fractional area of emptying, along with a reduced peak strain rate. Despite severe RA dysfunction, we found no correlation between deformational indices and other echocardiographic parameters and/or RV diastolic volume index in CMR. Considering this finding accompanied with the result of Hui W et al. (15) study, it could be concluded that RA dysfunction is present in all TOF patients at early stages even in asymptomatic ones and would not be a useful index for determining the time for PVR in symptomatic patients with TOF. The long-term prognosis of adult patients with congenital heart disease is insufficiently known and largely dependent on the right-sided cardiac function (7). RA strain imaging properties could be considered as a noninvasive and comprehensive tool to assess the right side chambers function in patients with congenital heart disease including TOF. Patients with higher atrial strain imaging values seem to have a better right atrial performance. The prognostic significance of RA dysfunction and changes in RA function indices measured by SRI following PVR should be addressed in further studies.
5.1. Study Limitations
Similar to other Doppler modalities, tissue Doppler-derived strain measurements are dependent on the direction of the Doppler angle. Therefore, interpretation of the SR should be performed cautiously if tissue direction deviates more than 30° from the direction of the ultrasonic beam. In light of our findings, we concluded that RA function is severely diminished in adult patients with TOF. It could play an important role in pathophysiology of the right sided heart failure in this group of patients and should be addressed in further studies.
|
|

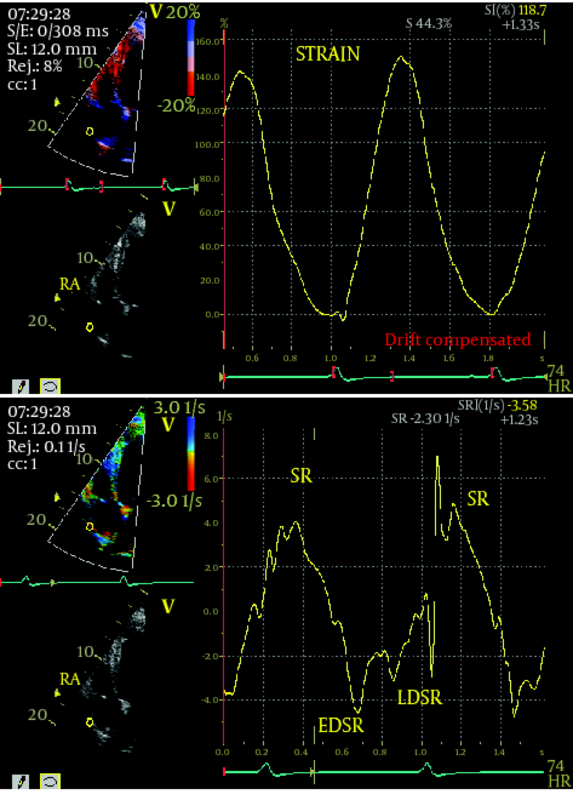

Figure 1.
Right Atrial Strain Rate Analysis
|
Strain Rate Imaging of right atrium in a normal subject .The sample volume (3-4mm) was placed in the right atrial lateral wall at an apical four- chamber view.
Acknowledgments
We would like to thank our colleagues in Rajaei Cardiovascular medical and research center in particular department of echocardiography
Footnotes
