Simultaneous Left Ventricle and Left Atrial Appendage Thrombi in a Patient with Dilated Cardiomyopathy

Laxman Dubey 1, * ; and Ridhi Adhikari 2
1 Department of Cardiology, College of Medical Sciences and Teaching Hospital, Bharatpur-10, Chitwan, Nepal
2 Department of Radio Diagnosis, College of Medical Sciences and Teaching Hospital, Bharatpur-10, Chitwan, Nepal
*Corresponding author: Laxman Dubey, Department of Cardiology, College of Medical Sciences and Teaching Hospital, Bharatpur-10, Chitwan, Nepal. Tel: +977-9851123288, Fax: +977-56521527, E-mail: dr.dubeylax@gmail.com.
Archives of Cardiovascular Imaging. 2015 February; 3(1): e23631 , DOI: 10.5812/acvi.23631
Article Type: Discussion; Received: Sep 14, 2014; Revised: Jan 24, 2015; Accepted: Feb 1, 2015; epub: Feb 20, 2015; ppub: Feb 2015

Keywords: Dilated Cardiomyopathy; Echocardiography; left Ventricle; Thrombus

1. Introduction


A 24-year-old male, diagnosed with post myocarditis dilated cardiomyopathy (DCM), presented with dyspnea and body swelling. On examination, he was ill-looking. Blood pressure was 90/60 mm Hg and his heart rate was 110 beats per minutes. Upon physical examination, pitting edema was noted in bilateral lower extremities and a S3 gallop sound was audible. Jugular venous pulse was raised. Chest X-ray showed cardiomegaly with pulmonary congestion. Electrocardiography showed sinus tachycardia. The cardiac enzymes were within the normal range. What is the echocardio­graphic diagnosis based on the Figure 1 and videos 1,2?


Figure 1.
Transthoracic Echocardiography

2. Answer


Transthoracic echocardiography revealed global wall hypokinesia, dilated chambers, and the left ventricular (LV) systolic dysfunction with moderate pericardial effusion. There was a large thrombus in the LV apex (Figure 1 A, Video 1). In the modified subcostal view, there was another thrombus floating in the left atrial appendage (LAA) (Figure 1 B, 1C, Video 2).


Transthoracic Echocardiography: Apical 4-Chamber View Showing Thrombus in the Left Ventricular Apex


Transthoracic Echocardiography: Modified Subcostal View Showing Thrombus in the Left Atrial Appendage

3. Comments


Patients with DCM are at a particularly high risk of the LV thrombus formation because of the poorly contracting ventricle that allows blood stasis. Atrial fibrillation (AF) is known to be highly associated with the LAA thrombus formation. However, simultaneous thrombus in the LV and LAA is an unusual occurrence in the absence of AF. As LAA is larger, it may be an additional source of thrombi in patients with DCM (1). It has been reported that the LAA maximal area is an independent predictor of LAA thrombi in patients with DCM in sinus rhythm (2). Because of the high prevalence of embolization, anticoagulant therapy should be started immediately. Despite reports of successful resolution with anticoagulants treatment, some experts suggest surgical removal of the thrombus with simultaneous treatment of the underlying cause is the treatment of choice because anticoagulation alone can result in fragmentation of the thrombus and embolization (3).

Footnotes

Authors’ Contributions: Laxman Dubey performed echocardiography, collected figures, conducted literature review, and prepared the manuscript. Ridhi Adhikari assisted in collecting data and drafting the paper. The final manuscript was approved by both authors.

References


  • 1. Bakalli A, Kamberi L, Pllana E, Zahiti B, Dragusha G, Brovina A. The influence of left ventricular diameter on left atrial appendage size and thrombus formation in patients with dilated cardiomyopathy. Turk Kardiyol Dern Ars. 2010;38(2):90-4. [PubMed]
  • 2. Bakalli A, Georgievska-Ismail L, Kocinaj D, Musliu N, Zahiti B, Krasniqi A, et al. Left ventricular and left atrial thrombi in sinus rhythm patients with dilated ischemic cardiomyopathy. Med Arch. 2012;66(3):155-8. [PubMed]
  • 3. Balaji R, Srinath VS, Krishna Kumar KV. Left atrial ball valve thrombus. J Clin Sci Res. 2013;2:236-8.

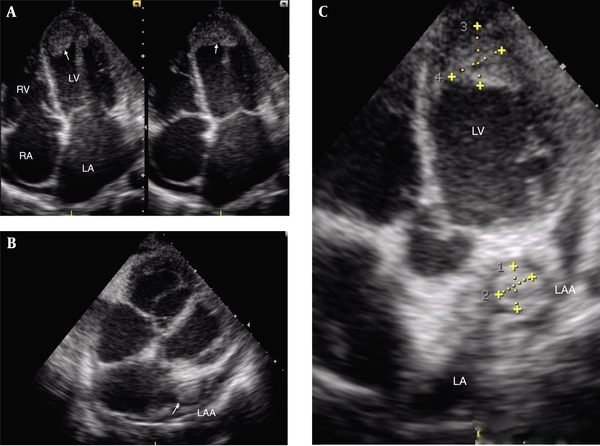

Figure 1.

Transthoracic Echocardiography
A) Apical 4-chamber view showing the left ventricular apical thrombus (arrow); LA, Left Atrium; LV, Left Ventricle; RA, Right Atrium; RV, Right Ventricle. B) Modified subcostal view showing ball thrombus in the left atrial appendage (LAA) (arrow). C) Modified apical view showing thrombi in the LV and LAA.
